PFA Fluoropolymer Tube
Perfluoroalkoxy tubing combining PTFE-level chemical resistance with superior flex life and optical clarity for ultra-pure applications.
About PFA Tube
PFA, also known as Perfluoro Alkoxy, is part of the fluoropolymer family. PFA merges the advantages of other fluoropolymers including FEP (Fluorinated Ethylene Propylene) and PTFE (Polytetrafluoroethylene), embodying the best attributes of both.

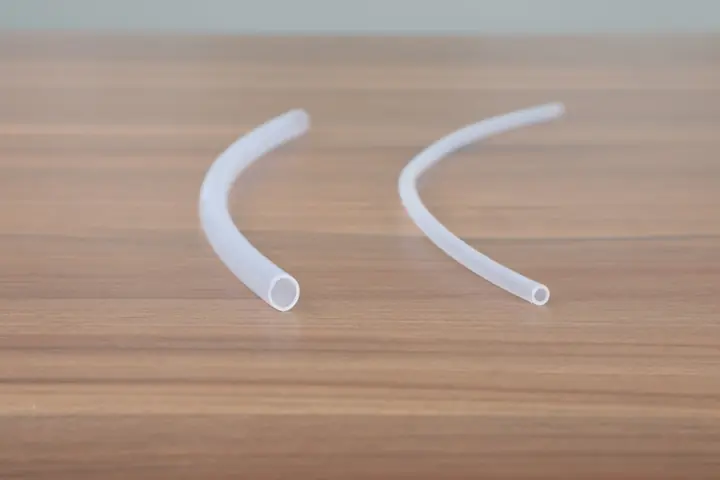

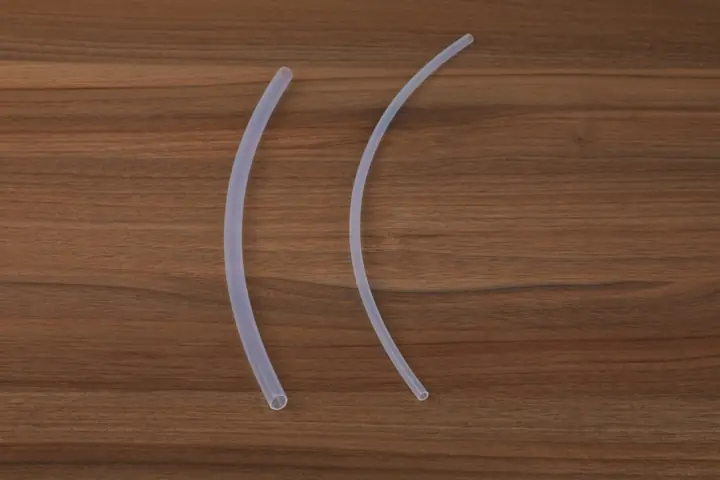

PFA tubing is a high-performance tubing that offers superior durability, especially under severe chemical and mechanical conditions. It has best-in-class electrical and mechanical properties and is resistant to most chemicals, solvents, and acids. PFA tubing is considered high-purity tubing, making it the best choice for gas and semiconductor applications. PFA is also highly translucent or transparent, enabling visual monitoring of flow — a key requirement in many critical applications.
The choice of tubing material depends on the exact requirements of the application: temperature range, chemical resistance, bend radius, pressure rating, and other mechanical properties.
Sub-Types
Available Variants
General-purpose PFA for process industry, pharmaceutical, and high-temperature instrumentation applications. Superior flex life versus PTFE in dynamic applications.
Specifications & Standards
| Parameter | Value / Range |
|---|---|
| Material | PFA (Perfluoroalkoxy Alkane) |
| Operating Temperature | -200°C to +260°C continuous |
| Melting Point | 300–310°C |
| Density | 2.12–2.17 g/cm³ |
| Tensile Strength (23°C) | 1,740 psi (12 MPa) |
| Thermal Conductivity | 1.45 Btu·in/h·ft²·°F (0.209 W/m·K) |
| Dielectric Strength | High — low dissipation factor, low dielectric constant |
| Chemical Resistance | Inert to strong mineral acids, inorganic bases, oxidizing agents, salt solutions, organic acids, aromatics, alcohols, ketones, ethers, esters, chlorocarbons, fluorocarbons |
| Colour | Natural clear; opaque white on request |
| Size Range | Available in many metric and inch sizes |
| FDA Compliance | 21 CFR 177.1550; USP Class VI available |
| Standards | ASTM D3307, SEMI F57 (ultra-pure grade) |
Applications
- Gas and semiconductor chemical delivery systems
- High-purity pharmaceutical process lines
- WFI and ultra-pure water distribution
- Analytical instrument sample paths requiring visual flow monitoring
- Severe chemical and mechanical environments — acids, bases, solvents
- High-temperature flexible connections up to 260°C
- Electrical insulation requiring high dielectric strength
- Applications demanding both PTFE-level resistance and FEP-level clarity
Related Products
Advanced Fluro Private Limited
Request a Quote for PFA Tube
Share your specifications — ID, OD, wall thickness, length, quantity, and application. We respond within one business day.
